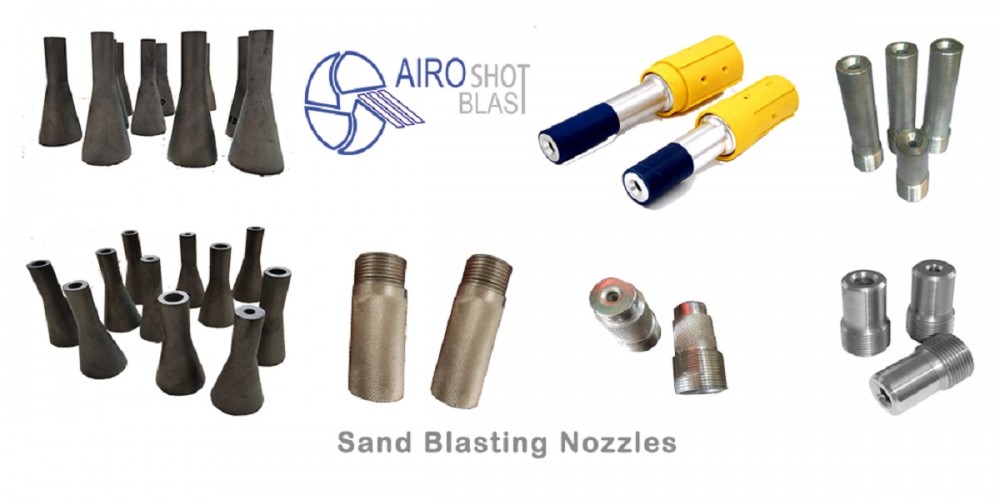

Sand Blasting Nozzles
Nozzles are a crucial part of a sandblasting machine. They direct the flow of abrasive media during the blasting process. Customers can buy a large variety of nozzles as per their requirements.
: 31.07.2023
Sand Blasting Nozzles in India
Sandblasting nozzles are used to direct the flow of abrasive media. They are available in a wide range of varieties depending upon the applications. They have different sizes and chosen on the basis of customer requirements.
The performance of the Sand Blasting Machine depends on the type of nozzle used during blasting. Bore plays an important role in the blasting nozzles, enough pressure should be applied for better blasting. One should choose a nozzle by keeping the size of the bore in mind, it should be neither too small nor too big.
Nozzle selection should be based on two factors:
- Shape of the nozzle
- Material of nozzle
Compressors also, play a major role in the selection of nozzle. The pressure produced in the nozzle depends on the volume of air compressed per minute in the compressor. More the volume of air compressed will result in higher pressure produced in the nozzle. High pressure will increase the velocity of abrasive media and deliver more kinetic energy which helps in improving the production rate.
The nozzle which has good air pressure must be selected for getting the proper blasting done. One should use long size on a large surface so that consistent blasting can be done and productivity can also be increased. So, for large surface blasting purposes, long venturi nozzles are used which can be used at high pressure for large air and grit outputs.
Large venture nozzles are mostly preferred for bridge repainting and for all those large applications which cannot be performed by using small nozzles. On the other hand, medium and small size nozzles are used to fulfill smaller operations like surface preparation for further thermal spray coating.
Nozzles of different materials are used for different applications like, aluminum oxide which is also known as tungsten carbide or ceramic, made up of high-density metal. Other nozzles like boron sandblasting nozzles are used with very hard abrasive media. Roctec blasting nozzles are also used for blasting applications. They provide much resistance against abrasion but are very expensive. They are available in all sizes. Most of the nozzles have a thread size of 1-1/4 inch. Although, different thread sizes are available for different sandblasting applications.
Nozzle Materials
|
Tungsten carbide | Silicon carbide | Boron carbide | Composite carbide |
| Durability | 1/5 | 1/5 | 3/5 | 5/5 |
| Impact resistance | 5/5 | 5/5 | 1/5 | 3/5 |
| Price | Low | Low | High | High |
Manufacturers of Sand Blasting Nozzles
Blastrooms manufacturers are one of the best manufacturing company which exports and supplies sandblasting machines, shot blasting machines, thermal spray guns, abrasives, and many other products for blasting at affordable prices. Here, a large variety of nozzles in different shapes and sizes are also available made up of different materials. Buyers can get any type of nozzle as per their applications at very low prices.
Ans.
Sand blasting machine prices vary according to the cleaning rate and storage capacity. Sand blasting machines are available in many sizes as per the requirement.
Ans.
Sand blasting is a surface cleaning process. With the help of a sand blasting machine rust, and foreign particles remove easily. Sand blasting machine in India is available both in automatic and manual types.
Ans.
Sand blasting is easy to perform. While blasting it is necessary to wear operator safety wears so it will protect the operator from hazards. A portable sand blasting machine is used in an open area for large size of components. A portable sand blasting machine in India is a manual and semi-automatic type. Airless sand blasting machines are automatic and manual type as well.
Ans.
Sand blasting machine in India is available in many sizes. The weight of the sand blasting machine varies according to the size of the storage capacity tank. As the size of the capacity tank varies, sand blasting machine prices also vary.
Ans.
Sand blasting is a process of removing rust, old paint, burrs, and other impurities from the component surfaces. Sand blasting has a wide range of applications in many areas like wood, glass, steel, plastic, shipbuilding industries, on buildings, medical equipment, etc. Sand blasting machine in India also rough the smooth surface according to the application area.
Ans.
Sand blasting machine uses in various areas such as:-
- Railway coaches
- Handicrafts and wood
- Steel pipes
- Stones, Marbles, Granites
- Transformers and Tanks
- Military
- Shipyards
- Bridges
- Turbines
- Vehicle bodies, Automobiles, Turbocharges
- Windmill
- Casting, and forging
Ans.
An Air compressor is required for a sand blasting machine process. For an airless sand blasting machine, an electric wheel is used. Sand blasting machine in India is available in many varieties as per the requirement of the customers.
Ans.
For a sand blasting machine process minimum of 100 PSI air compressor is required. If work with a lower PSI cleaning rate of sand blasting machine in India is decreasing.
Ans.
Sand blasting machine in India gives surfaces a slightly textured profile. Sand blasting machine does not damage the component. Instead, sand blasting makes the component surface better so that thermal spray coating binds easily.
Ans.
In sand blasting most commonly used sand is white silica sand. Other blasting media such as aluminum oxide, glass beads, walnut shell, silicon carbide, etc are used in a sand blasting machine in India. Sand blasting machine price in India also vary as per the storage capacity of the tank.
