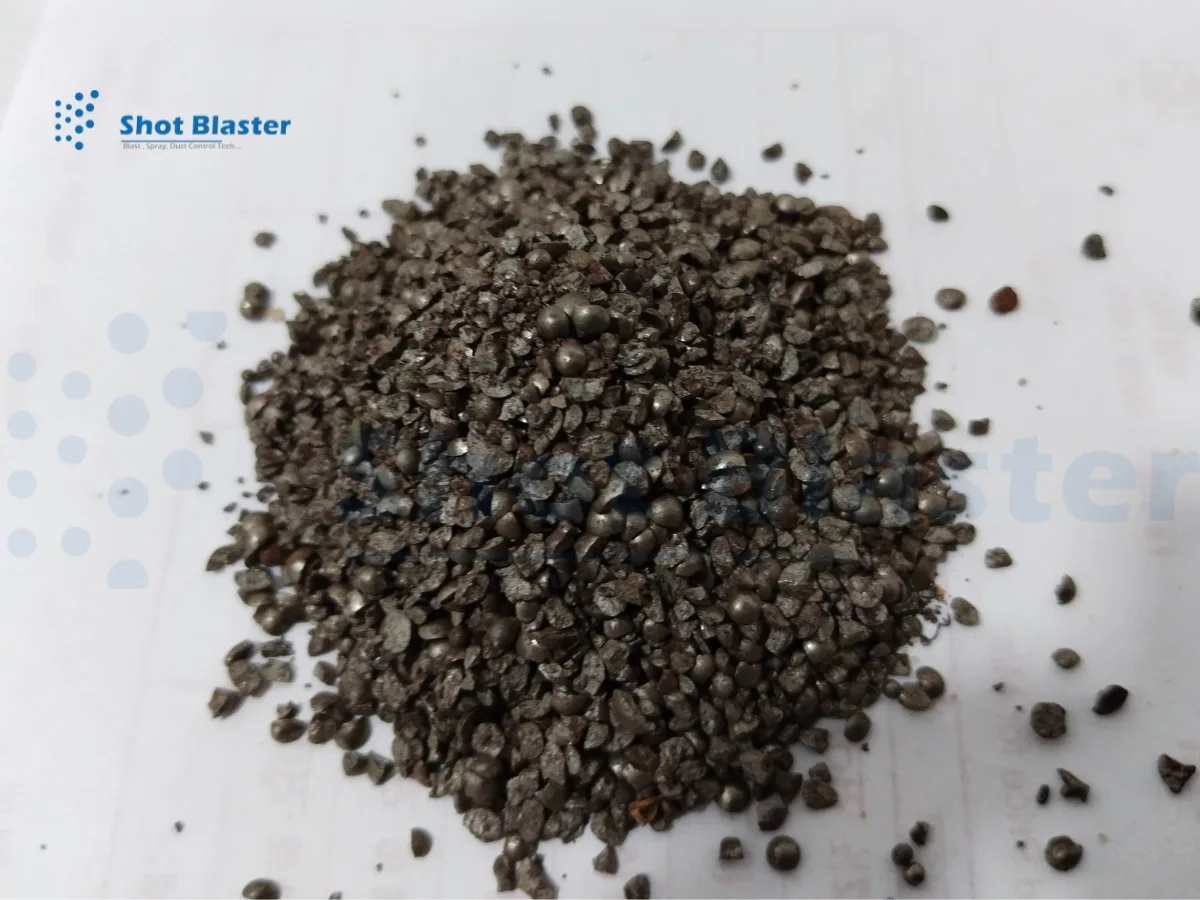

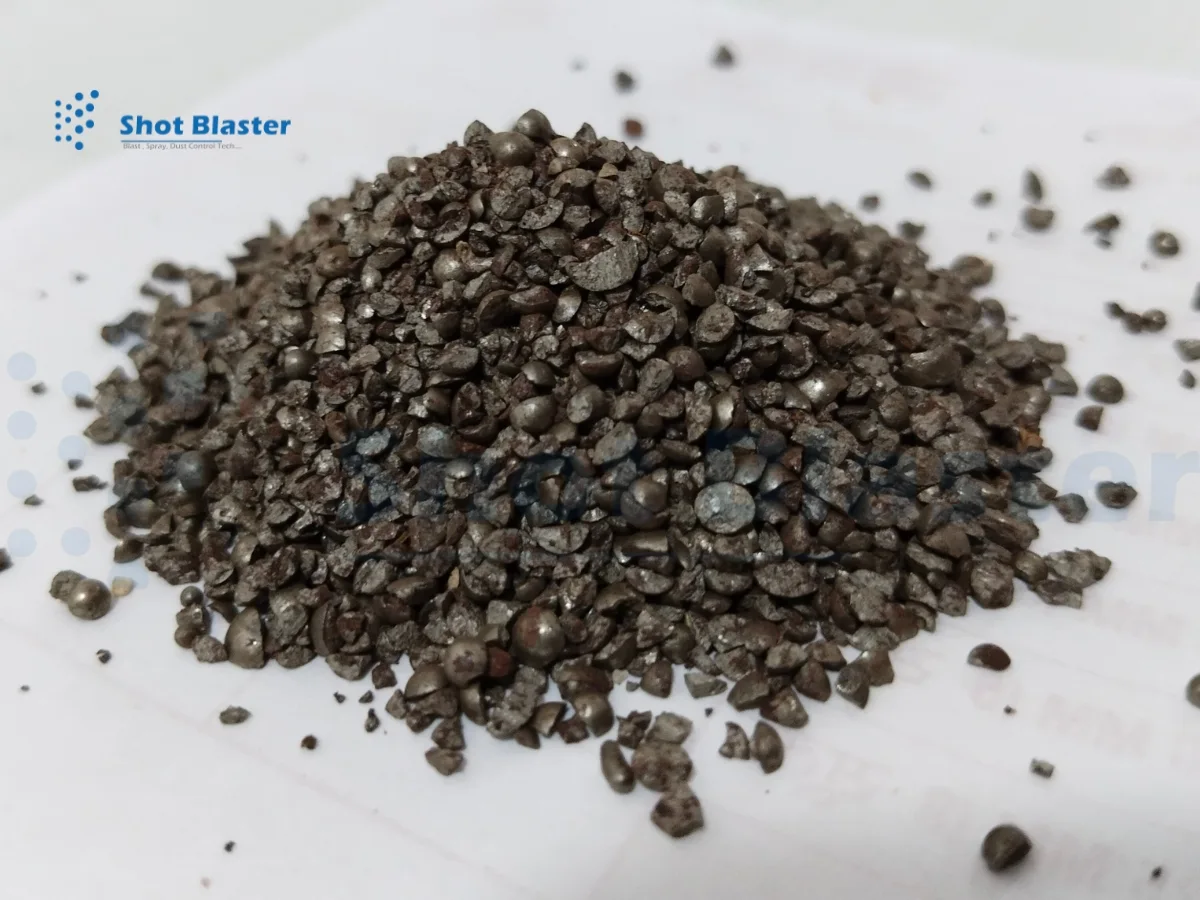

Chilled Iron Grit
A limited region of gray cast iron that has undergone quick cooling from the melt forms cast iron at that location. We refer to this variety of white cast iron as Cast chilled iron grit.
| Material | Chilled Iron Grit |
| Shape | Angular |
| Hardness | ≥ 56 HRC |
| Mesh Size | 16-80 Mesh |
| Density | 7.0 g/cm3 |
| Brand | Shot Blaster |
| Country | India |
| Color | Black |
| Packaging Size | 25kg, 50kg |
| Packaging Type |
Plastic Bag
|
- For Cleaning of the surface (descaling, derusting, settling).
- For Sharpening, sanding, & polishing.
- aggregate utilized to assemble barium concrete.
- For Stone cutting & grinding.
- In the Grit blasting machine.
- For abrasive blasting machine processing.
Chilled iron grit is an angular abrasive media. Chilled iron grit is created by melting cast iron waste in a cupola furnace & atomizing employing water jet. Thereafter shot is crushed. There is no thermal treatment. As a consequence of its heightened hardness, it is extremely breakable therefore it shatters into sharp-edged bits frequently.
Chilled iron grit is a challenging abrasive, which assembles it fitting for etching goals, though it is furthermore somewhat resistant to pressure. Throughout the blasting approach, cold iron recesses at an angle were created, constructing a limitless variety of sharp grit & the command to fast clean & roughen invariant the most challenging surfaces. It performs excellently in Sand blast rooms for quick cleaning & edging, but it shouldn't be employed in wheel blast machines since it quickly wears & releases the pieces of the machine.
Chilled Iron Grit Abrasive
Cast iron abrasive with superior performance & speed of cleaning is called Chilled Iron Grit Abrasive. This installation furnace's melted chilled iron grit abrasive & its lower leftover parts, along escorted by a closely monitored chemical analysis, assure a long-term warranty of assistance. In air blast applications, like blast chambers, & self-sufficient abrasive blasting machine, situation the blasting velocity is particularly more elevated than a certain steel grit, chilled iron grit is mostly employed.
Chilled Iron Grit Size
| Chilled Iron Grit Grade | Chilled Iron Grit Size |
| G02 | ≤ 0.13 mm |
| G05 | 0.12 - 0.3 mm |
| G07 | 0.18 - 0.42 mm |
| G12 | 0.3 -0.71 mm |
| G17 | 0.42 -0.85 mm |
| G24 | 0.6 - 1.00 mm |
| G34 | 0.85 - 1.2 mm |
| G39 | 1.0-1.4 mm |
| G47 | 1.2-1.7 mm |
| G55 |
1.4-2.0 mm |
| G66 |
1.7-2.4 mm |
| G80 |
2.0-2.8 mm |
Chilled Iron Grit Blasting
Steel & chilled iron grit blasting is a lower-cost & well organized strategy for releasing surface coatings, media paint & preparing an expansive scope of metal surfaces.
A robust abrasive equivalent to aluminum oxide grit blasting, chilled iron is typically employed for etching. Chilled iron grit abrasive media breaks quickly & at an angle when it is blasted against the metal surface, creating an infinite variety of intense grit & the capacity to quickly also roughen up enormously challenging surfaces. Chilled iron media's form assembles it a popular choice for metal spray painting surface preparation.
Steel grit is an forceful blasting media, sizably generally utilized to release contamination like rust from steel & foundry metals. Equivalent to chilled iron, it can even be utilized to escape an etched conclude on surfaces. We encountered a certain utilizing steel grit to compose a part for repair that will allow finer bonding of coatings.
Abrasive assembled from cast iron, chilled iron grit (GH) includes a martensitic & pearlitic microstructure accompanied by large incorporation of iron carbide. Per seed fractures unevenly throughout the abrasive blasting machine strategy, keeping the grit's sensitivity throughout. This describes its incredible cleaning breadths & its capability to roughen actual the most difficult surfaces.
Chilled Iron Grit Features
- faster action during cleaning.
- Comparable attributes to those of abrasive garnet.
- utilized to prepare surfaces for painting, enameling, & electroplating.
- Suitable for shot-blast inclination of castings, forgings, & rolled steel both before also behind heat treatment. Also appropriate for granite sawing & granite obstruction surface treatment.
We are regarded as one of the foremost producers & distributors of premium-grade chilled iron grit for the iron casting sector. These outcomes are manufactured underneath stringent leadership utilizing state-of-the-art machinery & technology. The products are recommended are oftentimes needed in multiple technical sectors & are utilized for foundry cleaning & sand reduction casting.
Chilled Iron Grit Manufacturer
Shot Blaster is the Best Chilled Iron Grit Manufacturer in India. and We are also Supplier of Chilled Iron Grit all over the world. We provide all types of Sand Blasting Machine, Sand Blast Room, Granite Engraving Tools, Shot Blasting Machine, Door Mounted Hanger Shot Blasting Machine, Swing Table Airless Blasting Machine, Granite Slab Airless shot blasting machine, Thermal Spray Gun, Tungsten Caride Coating, Zinc & Aluminum Metalizing Wire, Cyclone dust collector, Axial Flow Fan, Acoustic Chamber, abrasive media, cut wire shot, steel shot, glass beads abrasive, etc.
Ans.
Steel shots are typically harder and more durable than other types of blast media, such as glass beads or plastic media. This makes them more effective at removing tough surface contaminants, such as rust and mill scale. Steel shots can also be reused many times before needing to be replaced, making them a cost-effective option.
Ans.
Steel shots are small, spherical particles of steel that are used for shot blasting and peening applications. They are typically made by melting scrap steel and forming it into a spherical shape through a process called atomization.
Ans.
The two most prevalent forms of metallic abrasives are steel shot and steel grit. Because of its spherical form, steel shot will give the substrate's surface a smooth texture. The substrate surface will be etched and worn down by the randomly angular steel grit.
