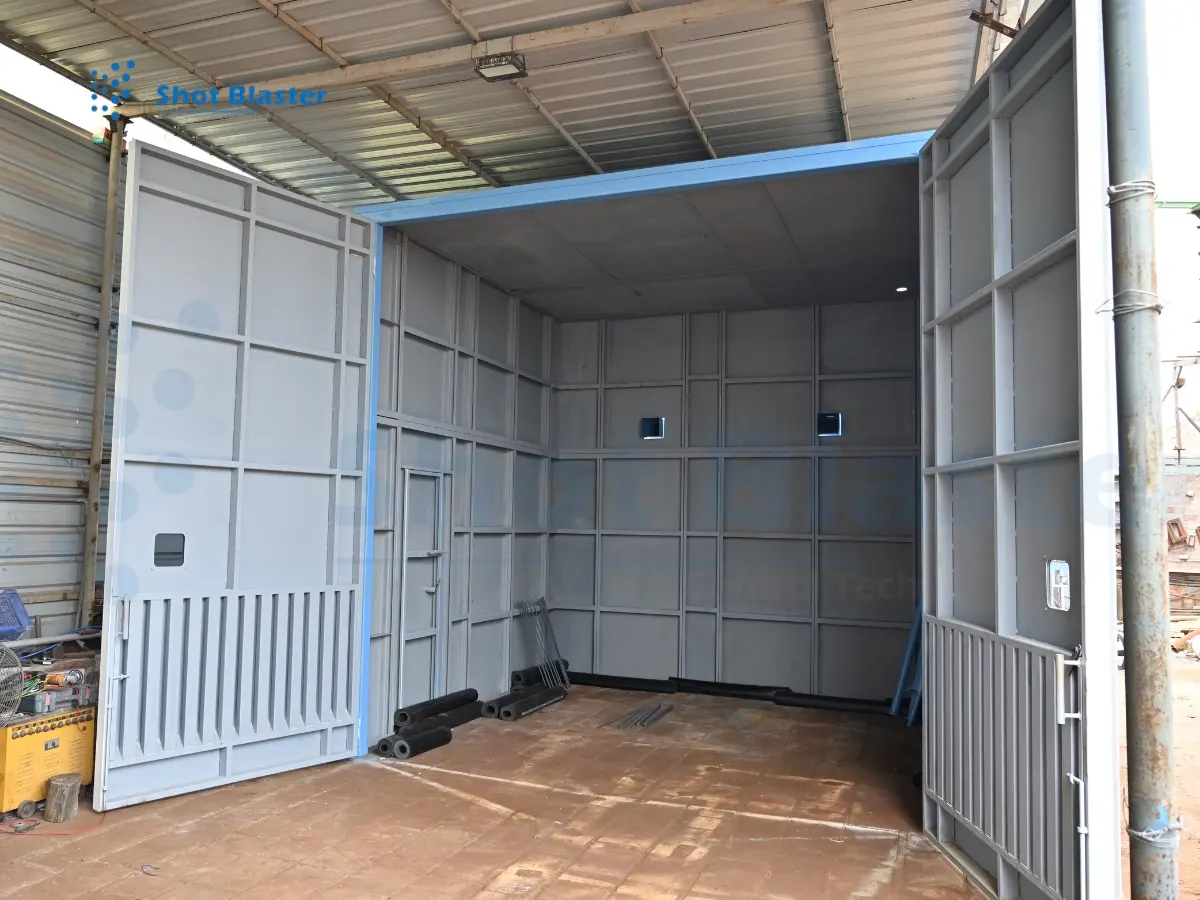

Sand Blast Room
All blasting operations are done inside a room and that room is known as the Sand Blast Room. It is larger in dimension so that any kind of blasting operation can be done in that room with great perfection.
|
Length of room |
3500mm |
|
Width of room |
3250mm |
|
Height of room |
2750mm |
|
Width of Door |
3050mm |
|
Height of door |
2600mm |
|
Noise level of machine |
70 to 75 dB |
|
Blasting Machine |
P7-750R |
|
Blast Nozzle |
Tungsten carbide 8mm orifice nozzle |
|
Blast Hose |
25mm I.D.X 9 mtrs. |
|
remote |
Yes |
|
Bucket Elevator Dimension |
600mm(W)X 200m(D) |
|
Belt Dimension |
100mm(W) X 10mm(T) |
|
Belt Dimension |
400mm(L)X 400mm(W)X 750m(D) |
- During construction projects, shot blasting is also used to clean the outer walls, roads, and floors.
- Shot blasting is often used to clean tanks and pipes underwater before coating or recoating them to stop corrosion.
- ShipYard and ShipBuilding.
- aircraft maintenance and aerospace.
- Foundry for iron, steel, and other metals.
- The casting of aluminum.
- Forgings.
- Rail.
- Foundries.
- fabrication of steel.
- Car and bus murals.
- Wheel cleaning for alloys.
Sand Blast Room is basically the larger version of the blast cabinet. Blast Room is created to reduce the environmental hazards and to decrease the air pollution around the workstation. It is also known as Sand Blasting Room.
The operator works inside the Sand Blasting Room and does all the blasting operations inside that room. Each operation requires different equipment and Sand Blast Room work in a combination of several other equipment’s such as:
- Blasting chamber
- Blast Room Door
- Rubber lining
- P7 750(R) Portable sand Blasting Machine
- Bucket Elevator
- Dust Collector
- Blast Room lighting
- Control panel
- Trolley and track
- Blasting Hopper
- Media Separator
- Dust Tank
- Air Blower
Working of Sand Blast Room
On Sand Blasting Room working, a dust collector is used for collecting dust in the blast booth. A portable Sand Blasting Machine is placed outside of the Sand Blasting Room and the operator can do blasting inside the blasting hose. Portable Sand Blasting Machine is automatically on-off by remote control and can be handled in the Sand Blasting Room also.
In Sand Blast Room Recovery System is of two types- mechanical and Vacuum. In a vacuum recovery system, compressed air is used to transfer grit. Moreover, In an automatic recovery system during grit, sand blasting abrasive falls down in the screw conveyor and then media is transferred in the bucket elevator. After then, the bucket elevator separates usable shots and non-usable by media separator. Usable shots fall down in the Sand Blasting Machine hopper and this process will continue.
Advantage of Sand Blast Room
- Clean environment
- Recycling of blasting media
- Cost Saving
- More efficient
Features of Sand Blast Room
- Abrasive Blasting machine
- Abrasive Recovery & Re-cycling System
- Dust Collectors
- Job Handling System
- Wall Protection Rubber Lining
- Illumination
- Electric Control Panel
Sand Blast Room Manufacturers in India
Blast Rooms is a Sand Blast Room Manufacturers, Supplier, and Exporter in India at an affordable price. We also manufacture other blasting machines like Grit Blasting Machine and Dust Collector. Our company also supplies various Abrasive Media on demand with great quality. Our prices are great as compared to other companies.
Call us immediately - Ph: +91-80039 97469
For more Queries Email us at - info@blastrooms.in
Ans.
Sand blasting machine prices vary according to the cleaning rate and storage capacity. Sand blasting machines are available in many sizes as per the requirement.
Ans.
Sand blasting is a surface cleaning process. With the help of a sand blasting machine rust, and foreign particles remove easily. Sand blasting machine in India is available both in automatic and manual types.
Ans.
Sand blasting is easy to perform. While blasting it is necessary to wear operator safety wears so it will protect the operator from hazards. A portable sand blasting machine is used in an open area for large size of components. A portable sand blasting machine in India is a manual and semi-automatic type. Airless sand blasting machines are automatic and manual type as well.
Ans.
Sand blasting machine in India is available in many sizes. The weight of the sand blasting machine varies according to the size of the storage capacity tank. As the size of the capacity tank varies, sand blasting machine prices also vary.
Ans.
Sand blasting is a process of removing rust, old paint, burrs, and other impurities from the component surfaces. Sand blasting has a wide range of applications in many areas like wood, glass, steel, plastic, shipbuilding industries, on buildings, medical equipment, etc. Sand blasting machine in India also rough the smooth surface according to the application area.
Ans.
Sand blasting machine uses in various areas such as:-
- Railway coaches
- Handicrafts and wood
- Steel pipes
- Stones, Marbles, Granites
- Transformers and Tanks
- Military
- Shipyards
- Bridges
- Turbines
- Vehicle bodies, Automobiles, Turbocharges
- Windmill
- Casting, and forging
Ans.
An Air compressor is required for a sand blasting machine process. For an airless sand blasting machine, an electric wheel is used. Sand blasting machine in India is available in many varieties as per the requirement of the customers.
Ans.
For a sand blasting machine process minimum of 100 PSI air compressor is required. If work with a lower PSI cleaning rate of sand blasting machine in India is decreasing.
Ans.
Sand blasting machine in India gives surfaces a slightly textured profile. Sand blasting machine does not damage the component. Instead, sand blasting makes the component surface better so that thermal spray coating binds easily.
Ans.
In sand blasting most commonly used sand is white silica sand. Other blasting media such as aluminum oxide, glass beads, walnut shell, silicon carbide, etc are used in a sand blasting machine in India. Sand blasting machine price in India also vary as per the storage capacity of the tank.
