Sand Blasting Machine
For blasting activities, a sand blasting machine is employed so that any dust or pollutants can be quickly removed from the metal surface. It's utilized for surface preparation in a variety of industries.
| Model | Compressor Requirement | Cleaning Rate (Sq.m/hr.) | Abrasive Size |
| P7150 | 60 CFM | 4-7 | 25-80 MESH |
| P7300 | 85 CFM | 5-9 | 25-80 MESH |
| P7500 | 113 CFM | 9-12 | 16-80 MESH |
| P71000 | 217 CFM | 15-21 | 16-80 MESH |
- During construction projects, shot blasting is also used to clean the outer walls, roads, and floors.
- Shot blasting is often used to clean tanks and pipes underwater before coating or recoating them to stop corrosion.
- ShipYard and ShipBuilding.
- aircraft maintenance and aerospace.
- Foundry for iron, steel, and other metals.
- The casting of aluminum.
- Forgings.
- Rail.
- Foundries.
- fabrication of steel.
- Car and bus murals.
- Wheel cleaning for alloys.
Sand Blasting Machine is mainly used to remove rust, corrosion, and contaminants from the metal surface with the help of abrasive media. For Sand Blasting Operation, silica sand is used as an abrasive in the Sand Blasting Machine. It is also used to mold and clean the surface of the metal. For this blasting process, compressed air is used at high velocity, and pressure is imparted on the blast wheel. It is the strongest method among all the other blasting methods.
Working of Sand Blasting Machine
Surface preparation is accomplished using compressed air and abrasives in this Sand / Shot Blasting Machine. It is one of the most efficient and quick blasting methods. It includes blasting a stream of abrasive material at a rough surface. The propellant is compressed air or pressurized liquid in this case.
Abrasive blasting is another name for sand blasting. Operators are encouraged to use protective clothing when operating the Sand Blasting Machine for their own safety. Shot blasting, soda blasting, and bead blasting are some of the other types of the Sand Blasting process.
Types of Sand Blasting Machine
- Portable Sand Blasting Machine
- Cabinet Type Sand Blasting Machine

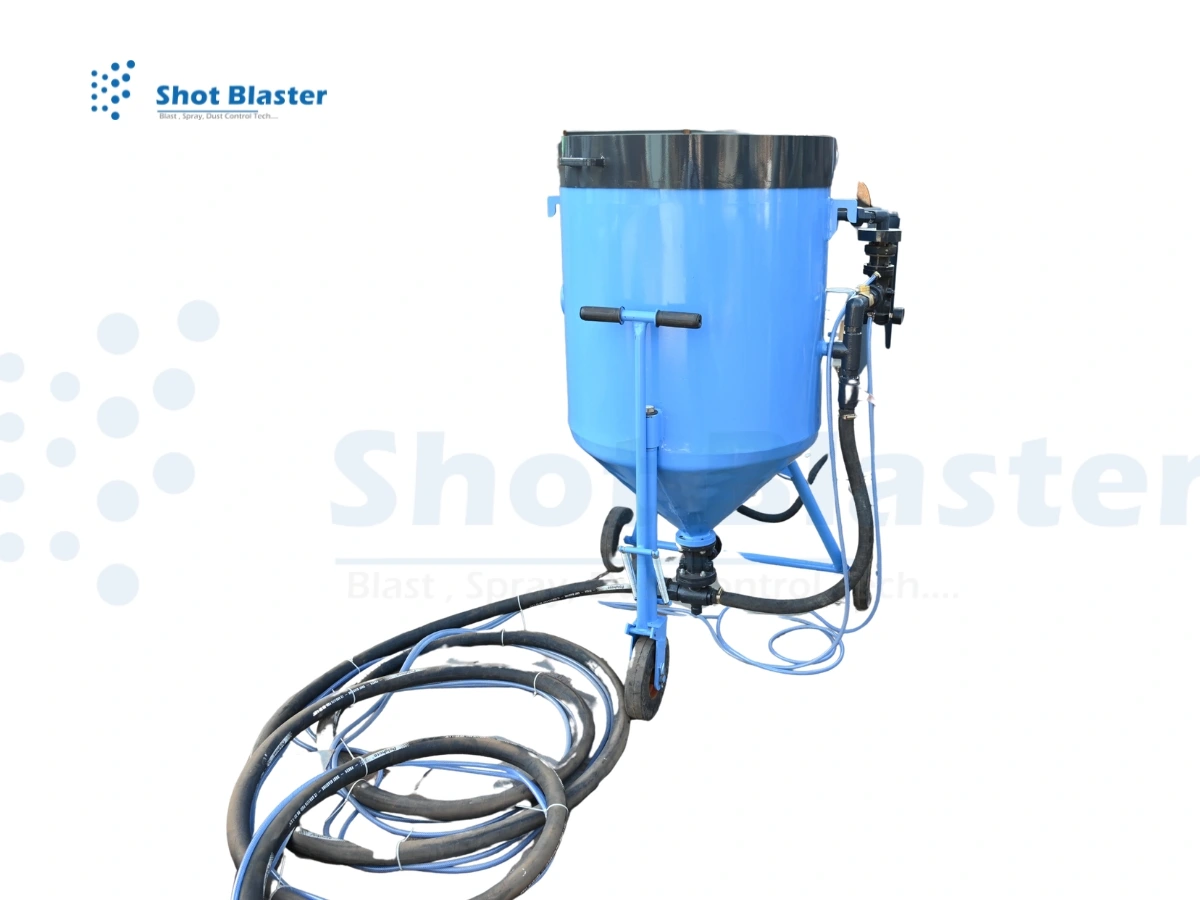

Portable Sand Blasting Machine
Glass, ceramics, stone, metal, and plastic have all been successfully blasted with the portable Type Sand Blasting Machine. The portable sand blasting machine is safe, high-productivity equipment that can be used to prepare a variety of surfaces using a variety of abrasive media. Any metal can be debarred, de-flashed, and stress relieved.
The pressure vessels are coded after being tested to 250 psi. The pressure blasting principle is used in the portable type sand blasting equipment, which consists of a blast generator and pressure vessels that have been tested to 250 psi.
Technical Features of Portable Type Sand Blasting Machine
|
Abrasive Media Storage Capacity |
25 Liters or 50L |
|
Gun |
Type 451 with Trigger |
|
Blasting Hose |
1,5m. (5/8”) |
|
Nozzles |
Tungsten Carbide |
|
Nozzles sizes |
6 and 8 mm |
Features of Portable Type Sand Blasting Machine
- Fill and seal automatically
- Large inspection door for easy access to the interior of the tank
- An exhaust valve made of heavy-duty cast iron.
- A remote control system for pressure release is available.
- Wheels that are mounted can be moved to any location or job site.
- The abrasive regulator is made of heavy-duty cast iron.
- Pusher line with no pressure loss due to elbows
- Pressure vessel that can deliver up to 160 psi
- When compared to 1-inch piping, it permits up to 50% greater airflow.
Cabinet Type Sand Blasting Machine
These cabinet-type sand blasting machines are ideal for treating the surface of any product, including metal, glass, and plastic, as well as eliminating oxide skin. Residues, burrs, and scratches can also be employed for decoration light, matte, and strengthen management during the operation in this technology.
Technical Features of Cabinet Type Sand Blasting Machine
|
Number of guns |
the aluminum alloy with boron carbide nozzle |
|
Separator motor |
0.75kw |
|
Power supply |
110V /220V/380V/410/450V (50-60HZ) |
|
Lighting |
18w fluorescent |
|
Compressed air supply |
with the pressure at a 3-8 bar (kg/cm2) and flow of 0.5-1.2m3/min, it can dry and clean compressed air normally. |
Advantage of Cabinet Type Sand Blasting Machine
The surface preparation benefits greatly from the sand blasting cabinet. The separator will separate the abrasive from the bust in this machine, which includes a cyclone separation system and a dust removal system. This technology's dust removal system can handle and collect unwanted dust, lowering the cost of abrasives and increasing the efficiency of practically any type of surface. The best aspect about this machine is that it is environmentally friendly; there will be no pollution at your location throughout the operation.
Abrasives Used for Sand Blasting
- Glass Beads
- Steel Grit
- Steel Shot
- White Aluminum Oxide
- Brown Aluminum Oxide
Sand Blasting Machine Manufacturers in India
Blast Rooms are the leading Sand Blasting Machine manufacturer in India. We also provide the best services of portable sand blasting machine, shot blasting machine, sand blasting cabinet, sand blasting room, sand blasting nozzles, and many other products required for blasting operations at an affordable price. Here, customers get full technical support with the best services.
Ans.
Sand blasting machine prices vary according to the cleaning rate and storage capacity. Sand blasting machines are available in many sizes as per the requirement.
Ans.
Sand blasting is a surface cleaning process. With the help of a sand blasting machine rust, and foreign particles remove easily. Sand blasting machine in India is available both in automatic and manual types.
Ans.
Sand blasting is easy to perform. While blasting it is necessary to wear operator safety wears so it will protect the operator from hazards. A portable sand blasting machine is used in an open area for large size of components. A portable sand blasting machine in India is a manual and semi-automatic type. Airless sand blasting machines are automatic and manual type as well.
Ans.
Sand blasting machine in India is available in many sizes. The weight of the sand blasting machine varies according to the size of the storage capacity tank. As the size of the capacity tank varies, sand blasting machine prices also vary.
Ans.
Sand blasting is a process of removing rust, old paint, burrs, and other impurities from the component surfaces. Sand blasting has a wide range of applications in many areas like wood, glass, steel, plastic, shipbuilding industries, on buildings, medical equipment, etc. Sand blasting machine in India also rough the smooth surface according to the application area.
Ans.
Sand blasting machine uses in various areas such as:-
- Railway coaches
- Handicrafts and wood
- Steel pipes
- Stones, Marbles, Granites
- Transformers and Tanks
- Military
- Shipyards
- Bridges
- Turbines
- Vehicle bodies, Automobiles, Turbocharges
- Windmill
- Casting, and forging
Ans.
An Air compressor is required for a sand blasting machine process. For an airless sand blasting machine, an electric wheel is used. Sand blasting machine in India is available in many varieties as per the requirement of the customers.
Ans.
For a sand blasting machine process minimum of 100 PSI air compressor is required. If work with a lower PSI cleaning rate of sand blasting machine in India is decreasing.
Ans.
Sand blasting machine in India gives surfaces a slightly textured profile. Sand blasting machine does not damage the component. Instead, sand blasting makes the component surface better so that thermal spray coating binds easily.
Ans.
In sand blasting most commonly used sand is white silica sand. Other blasting media such as aluminum oxide, glass beads, walnut shell, silicon carbide, etc are used in a sand blasting machine in India. Sand blasting machine price in India also vary as per the storage capacity of the tank.
